● Power Supply : 1×9V 6F22 Battery
● Product Size : 250mm×99mm×43mm/9.8″×3.9″×1.7″
● Product Weight : 416g/0.92lb
● Certification : RoHS
● Safety Rating : CAT II 1000V / CAT III 600V
Testing Instruments

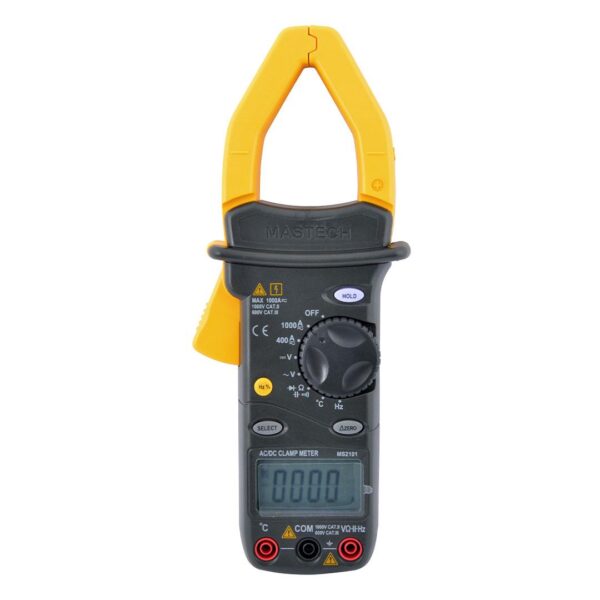

Mastech Clamp Meter MS 2101
● Power Supply : 1×9V 6F22 Battery
● Product Size : 250mm×99mm×43mm/9.8″×3.9″×1.7″
● Product Weight : 416g/0.92lb
● Certification : RoHS
● Safety Rating : CAT II 1000V / CAT III 600V
د.إ162
Compare|
Specifications |
Range |
Resolution |
Accuracy |
| DC Voltage | 400mV/4V/40V/400V | 0.1mV/1mV/10mV/0.1V | ±(0.7%+1) |
| 1000V | 1V | ±(0.8%+3) | |
| AC Voltage | 4V/40V/400V | 1mV/10mV/0.1V | ±(0.8%+5) |
| 750V | 1V | ±(1.0%+10) | |
| DC Current | 400A/1000A | 0.1A/1A | ±(3.0%+3) |
| AC Current | 400A/1000A | 0.1A/1A | ±(3.0%+3) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | 0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ | ±(1.2%+1) |
| 40MΩ | 10kΩ | ±(2.0%+3) | |
| Capacitance | 4nF/40nF/400nF | 1pF/10pF/0.1nF | ±(4.0%+10) |
| 4µF/40µF/100µF | 1nF/10nF/100nF | ±(4.0%+10) | |
| Frequency | 40Hz/400Hz/4kHz | 0.01Hz/0.1Hz/1Hz | ±(2.0%+1) |
| 40kHz/100kHz | 10Hz/0.1kHz | ±(2.0%+1) | |
| Duty Cycle | 0.1%~99.9% | 0.10% | ±(2.0%+2) |
| Temperature | -40℃~0℃ | 1℃ | ±(1.0%+6) |
| 1℃~400℃ | 1℃ | ±(1.0%+3) | |
| 401℃~750℃ | 1℃ | ±(1.0%+5) |
