Introduction :
|

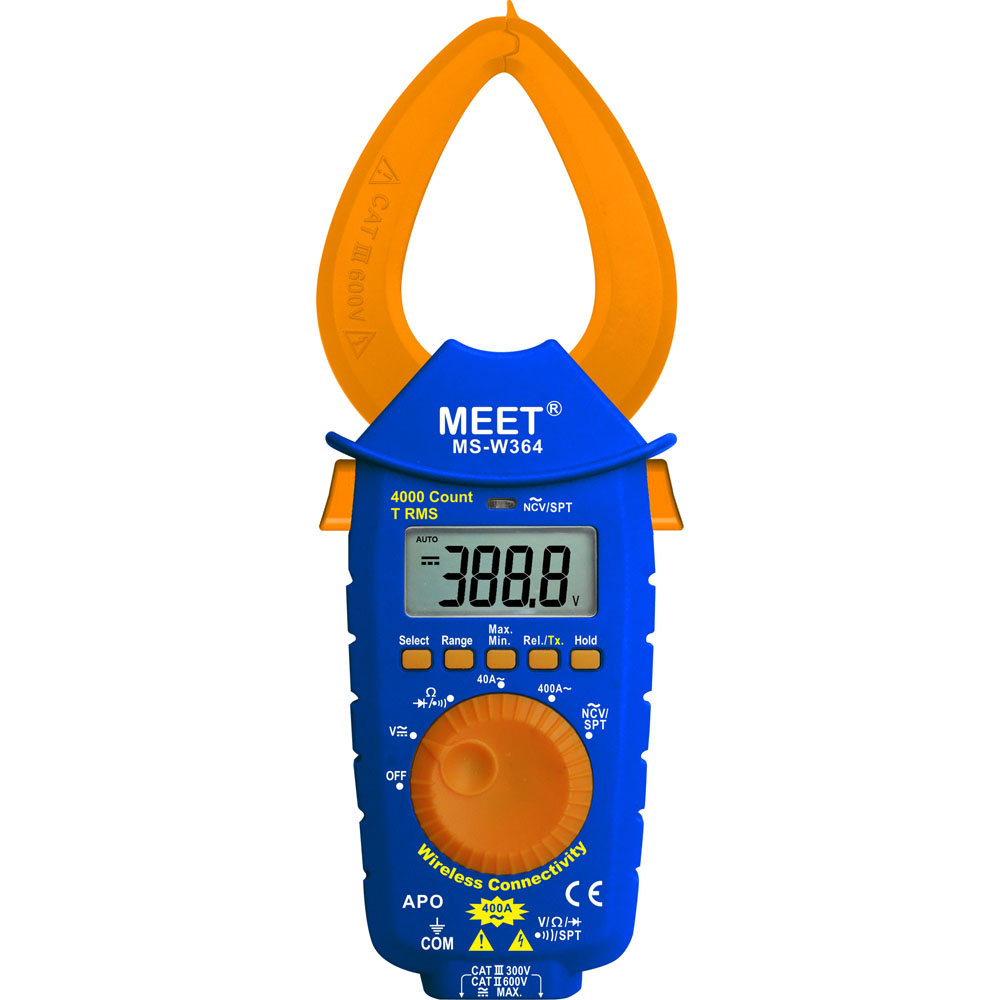

Meet Wireless Connectivity AC Clamp Meter MS W364
Advance features :
-Wide response band width.
-Large LCD display.
-Audible sound during continuity check.
-Non-contact AC voltage signal strength with audible and visible indication.
-Single probe test ‘SPT’ to identify ‘Live / Hot’ wire in AC circuit with audible sound and visible indication.
-Air-Cored Coil Sensor
-Software calibrated.
د.إ101
Compare-Max. voltage between terminal and earth : CAT II , 600V (AC / DC); CAT III , 300V (AC / DC)
-True RMS
-4000 counts (3-3/4 digit)
-Sampling rate 3 times / second
-Auto / Manual ‘V’ (AC / DC) (600V)
-Auto / manual resistor measurement : 0 -40MΩ (approx.)
-Continuity check : <50Ω Beep
-40A ~ 400A (AC) current
-Diode check : 3.000V
-‘NCV’ Non-Contact AC Voltage Detection (Audible and Visible) > 100V
-‘SPT’ Single Probe Test AC Voltage (Audible and Visible) > 100V
-Freeze / Hold reading
-Auto power off : 5 mins or always ‘ON’
-Relative reading (Rel)
-Max. / Min. / Max. – Min. display
-Maximum Conductor diameter for measurement (mm) < Ø50
-Maximum open jaw (mm) : Ø50
-Standalone mode : without external wireless module
-Wireless connectivity transmit data to Smart phone/Tablet with iOS APPS or Android APPS (require external wireless module MS-WMB1, sold separately)
-Data logger compatible(require external wireless with memory module MS-WMBM1, sold separately)
-Battery powered : 2 AAA (R03 / LR03 )
-Dimension (LxWxD) mm : 208x77x35
-Weight (approx.) grams : 129 (without battery)
