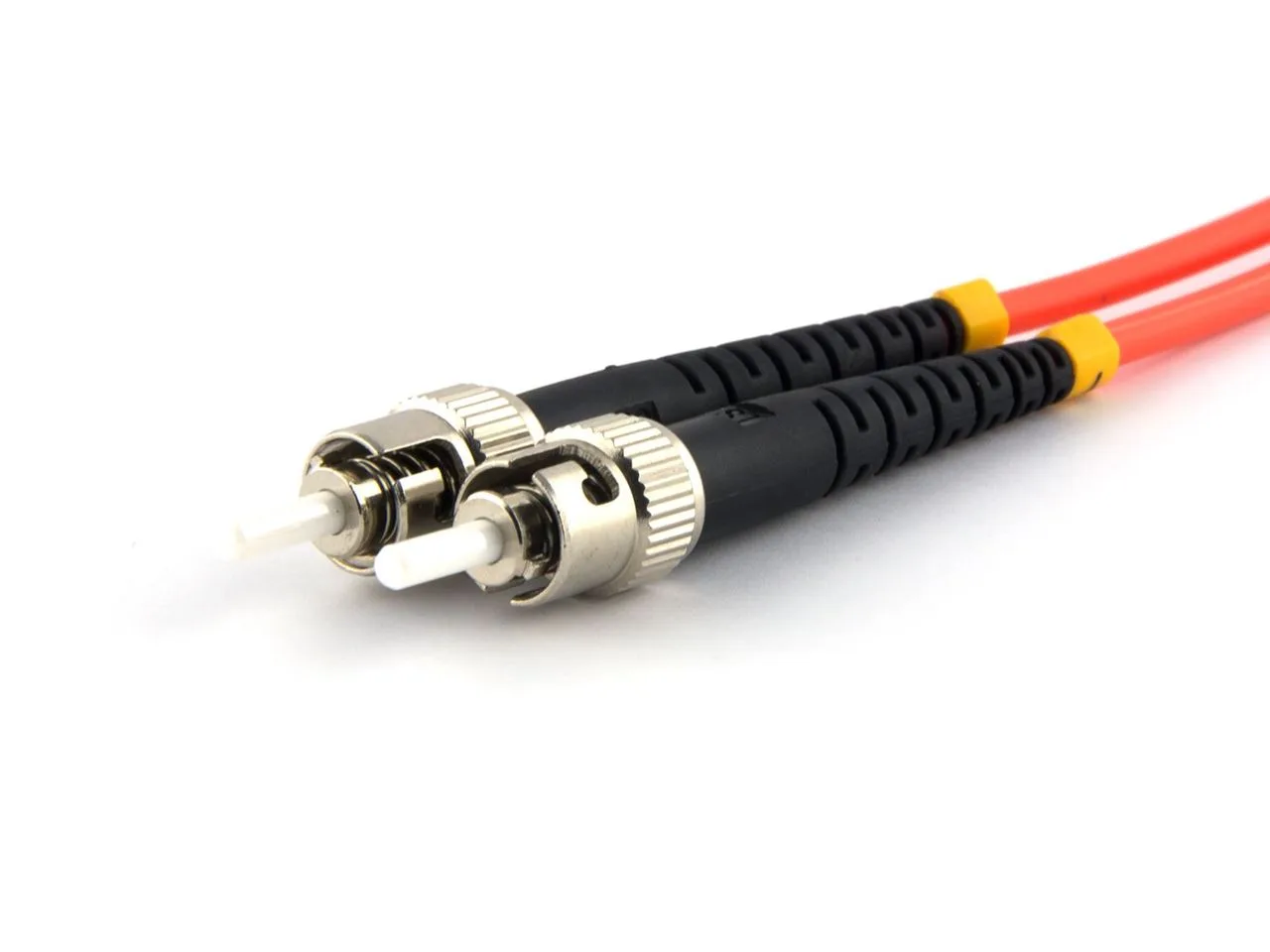

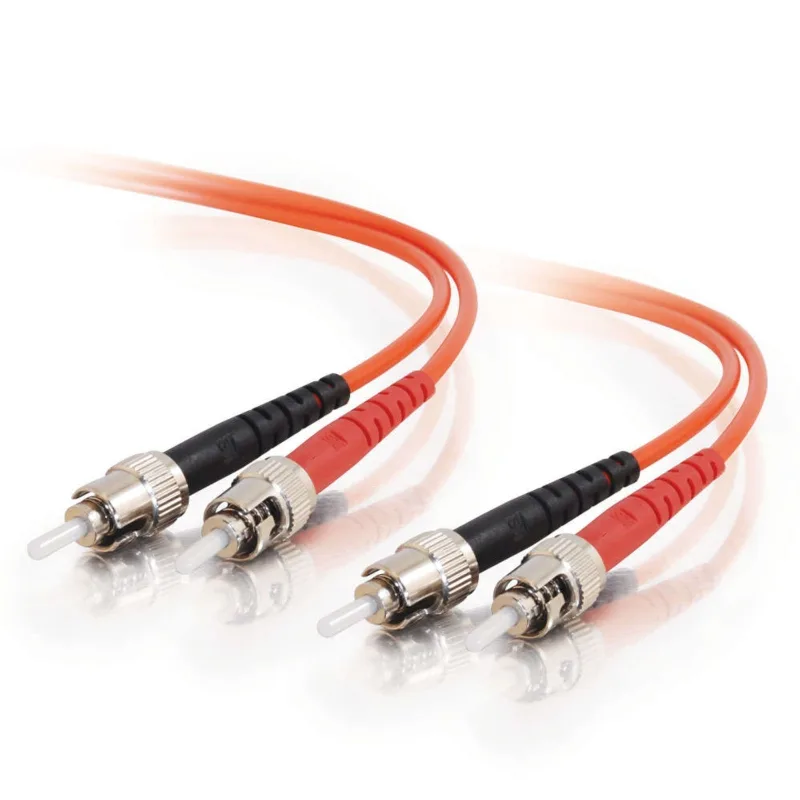

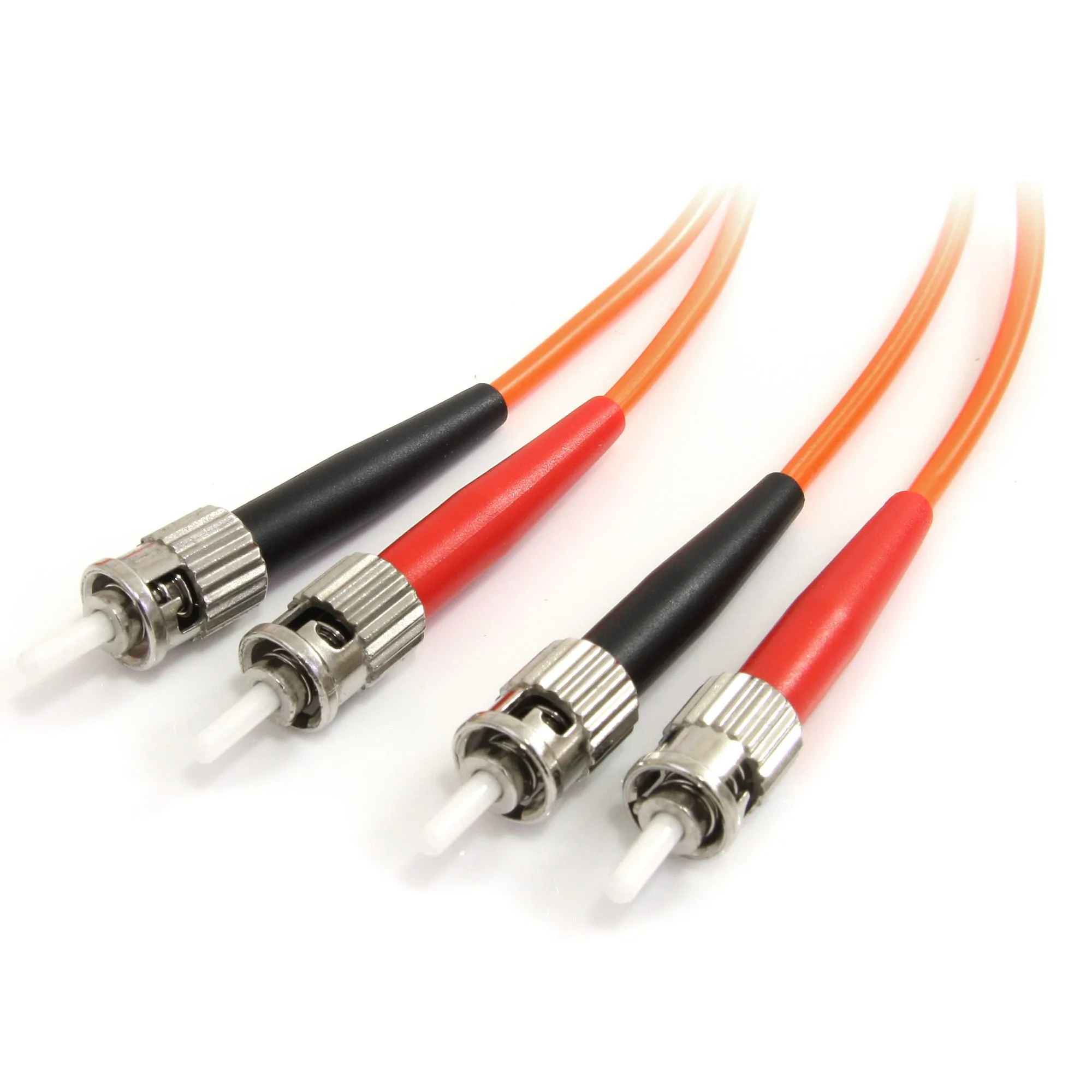

The MULTIMODE FIBER OPTIC CABLE STST2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated at both ends with ST (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This ST-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our ST-ST Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
Applications
- Ideal solution for data applications requiring high speed data transmission
- Broadband systems
- Telecommunication/Data communication
- Used by long distance networks with mission critical data
Feature
Good in repeatability and exchangeability
High temperature stability
Excellent end face geometry
ISO9001:2008, ROHS
Various fiber cable length, jacket color, connector type and label, etc.
All products undergo 100% strict quality inspection before shipment.
|
Model Name
|
Optical Fiber Patch Cord
|
|
Fiber Type
|
Multimode (OM1)
|
|
Cable Assembilies
|
Duplex
|
|
Jacket Material
|
PVC (LSZH Negotiable)
|
|
Cable Diameter (mm)
|
3.0mm
|
|
Connector Type
|
SC
|
|
End Face
|
PC
|
|
Working Wavelength (nm)
|
850/1300
|
|
Insertion Loss (dB)
|
≤0.3dB（MAX） ≤0.2dB（Typical)
|
|
Return Loss (dB)
|
UPC ≥35dB
|
|
Exchangeability
|
≤0.2dB
|
|
Operating Temperature（℃）
|
-40～85
|
|
Storage Temperature（℃）
|
-40～85
|
